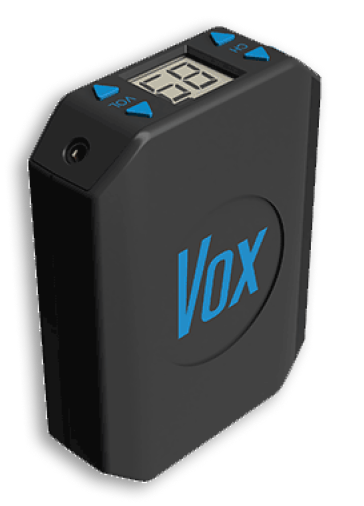

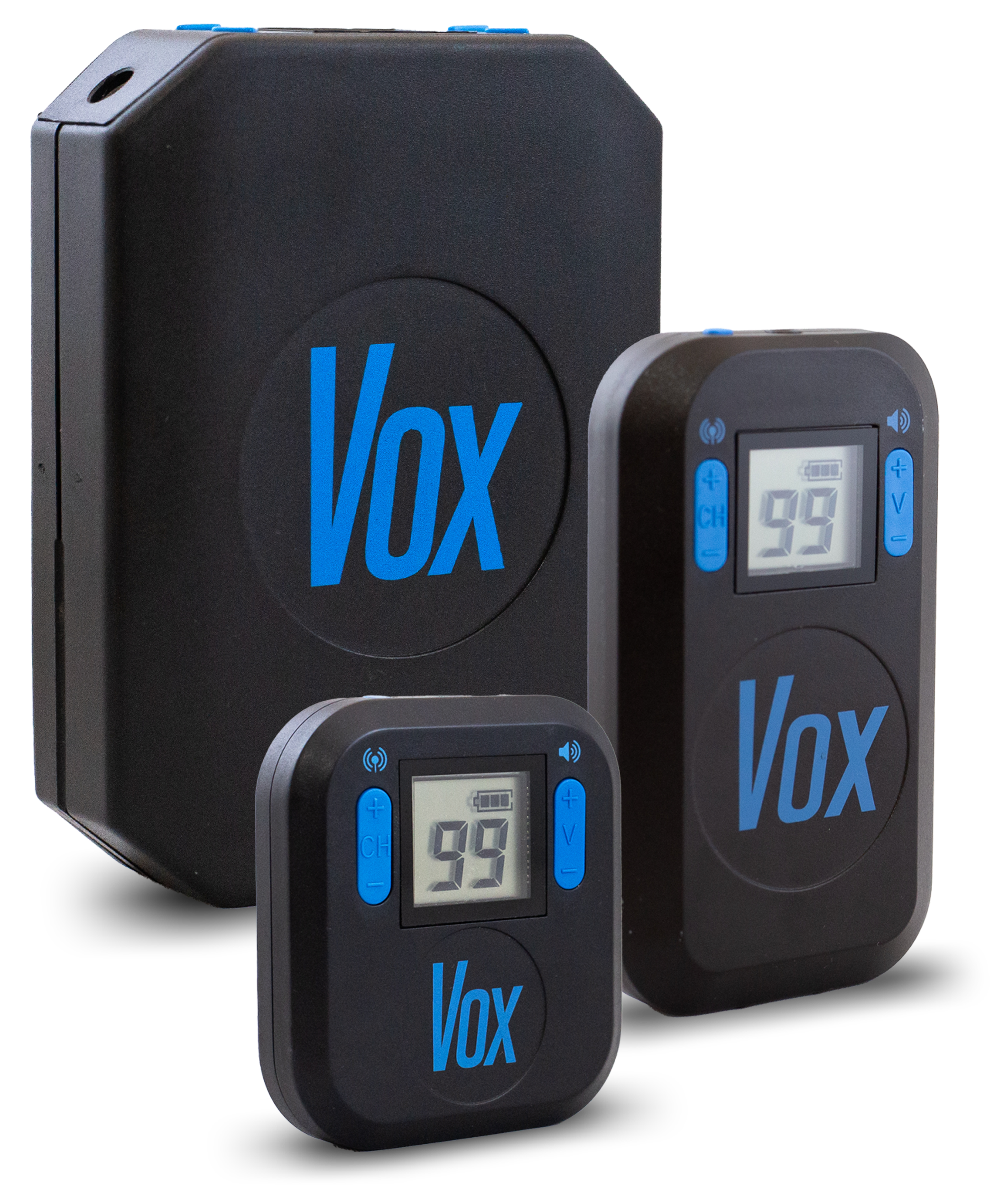

Introducing the Vox VDR™: Next-Generation Digital Radio System for Tour Guides

Elevate your guided tour experience with Vox VDR™, a state-of-the-art digital radio system that melds innovation, convenience, and exceptional audio quality into a single, elegant package.

Our next-generation technology is powered by patented intelligent pairing, ensuring an instant, seamless connection between the tour guide and participants. Even at whisper-level audio, the system delivers clear, high-standard quiet-vox-grade commentary. Designed for flexibility, Vox VDR™ offers up to 99 channels, allowing the guide to effortlessly select their transmission channel and get the tour started right away.

What sets the Vox VDR™ apart is its operation on the interference-free 1.9 GHz bandwidth, a fresh frequency band authorized by the ART. This allows the device to sidestep the congestion and interference commonly associated with the 2.4 GHz zone used by Bluetooth. Compliant with the latest European transmission regulations, our system promises an unbeatable, interference-free reception range of up to 300 metres, ensuring that you never miss a word.

In terms of durability and practicality, the Vox VDR™ excels with a staggering battery life of 65 hours and automatic on/off features. Its compact, lightweight, and stylish design makes it an ideal companion for any tour guide aiming to deliver a superior experience to their audience.

Technical specifications

Features

• State-of-the-art digital technology
• Certified EU telecoms compliant
• Compact and lightweight No external aerial
• Interference-free 200m range
• European manufactured
• Intelligent auto-pairing
• Patented proprietary technology
• Secured 99 channels
• Ultra long battery life with auto-save

Carrier Frequency Range	1880-1900Mhz
Operating Temperature	-10°c – 55°c
Power Requirements	3 VDC (Battery-Powered)
Output Power	<6mW
EIRP	<24.4 dBm
Modulation	GFSK
Simultaneous Transmissions	99
Operating Range	200m

The MicroGuide, is an exceptional tour guide system defined by its incredibly lightweight design.

Operating on the new frequency band authorised by the ART (1.9 GHz) and offering up to 99 channels, this fully automatic device possesses the same impressive features as the VOX VDR.

Taking compactness to a whole new level, the MicroGuide weighs a mere 29 grams, measuring 5.5cm x 6.0cm x 1.6cm, ensuring unparalleled visitor comfort during group tours. Additionnaly, The micro-clip attachment guarantees secure and convenient placement.

Furthermore, the MicroGuide boasts an impressive battery life of 20+ hours, allowing for extended usage without interruption. And with the intelligent charging dock, you can conveniently recharge your devices with ease.

Technical specifications

	Europe	US
FreQ Range	1881 MHz to 1898 MHz	1921 MHz to 1929 MHz
Channels	99 (digital, not RF related)	99 (digital, not RF related)
Modulation	GFSK	GFSK
Sensitivity	-91dBm	-91dBm
S.N.	>65dB	>65dB
THD+N	NA	NA
Freq Resp.	20 – 12000Hz	20 – 12000Hz
Earphone power output	0.7Vrms into 28 Ohm load	0.7Vrms into 28 Ohm load

Our lightweight Cleartone devices are incredibly simple to use and are perfect for group guiding of any type – literally switch on and enjoy. Cleartone devices are unrivalled in their quality, battery life and range, and provide an instant connection to your guide, always. When Cleartone devices are linked to the audio channels of other media, your customers can also enjoy music streaming, podcasts, radio stations, and video broadcasts during their moments of relaxation.

Technical specifications

Features

• Crystal clear audio quality
• Unbeatable range and 40 hour continuous usage
• Reliable pairing every time
• Multi-channel streaming
• On demand long-term and short term rentals
• Free worldwide shipping
• Guaranteed on-time logistics
• 24/7 customer care
• Eco sustainable and recyclable cases with reusable handles

Sensitivity	-102dB (20dB Sinad)
T.H.D.	>1%
Operating range	>100mt
S/N	>60 dB
Earphone power output	10 mW + 10 mW
Frequency Response	20 – 15000 Hz
Power Supply	2x AA battery (1,5 V)
Weight	60g (w/out battery)
Size	94x60x16mm (w/out antenna) 118x60x16mm (with antenna)
Channels	96/99 for each freq
Frequency range	from 470.00 to 870.00 MHz
Receiving method	PLL
Tuning method	UP and DOWN buttons on the front of the device

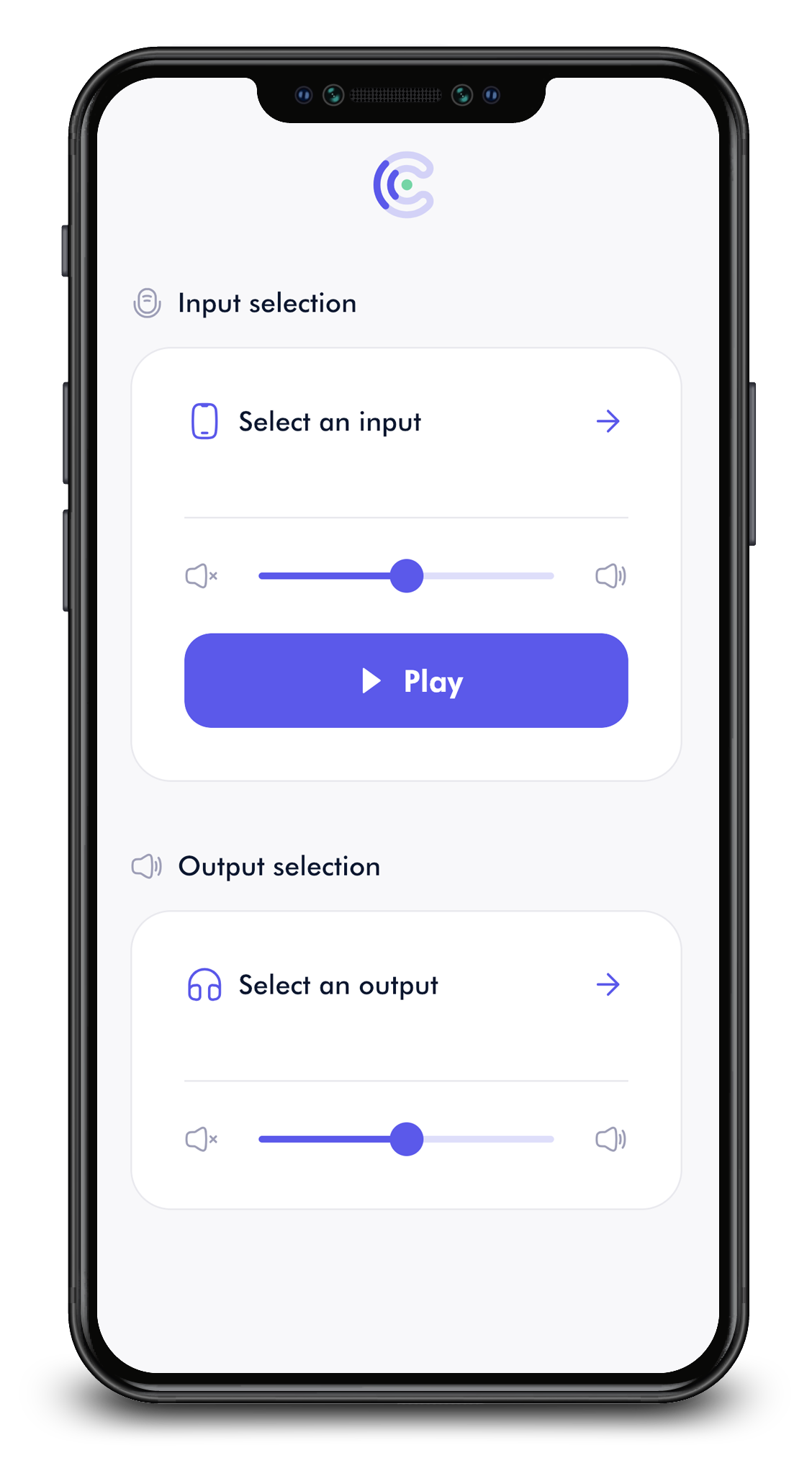

Vox Connect is a powerful guiding tool that empowers tour guides to connect instantly and wirelessly with group members, delivering live audio commentary directly to their smartphones, without the need of apps or downloads. Think lightning-fast connections, barely-there latency, and smooth operation at all times. Our revolutionary LinguaLink upgrade for Vox Connect allows guides to broadcast related recorded commentary in 10 or more languages simultaneously, all while delivering live narration in their primary language. This transformative feature enables tour operators to accommodate multiple languages on the same tour, without the need for additional multilingual live guides. In certain scenarios, tours can even be facilitated by an escort rather than a seasoned guide, as the main language commentary can also be shared as a recorded broadcast along with other recorded languages. Providing an engaging, multi-lingual guided tour experience has never been as straightforward as it is with LinguaLink from Vox Connect.

Technical specifications

Features

• Crystal clear communication
• Low latency reception
• Reliable connectivity over mobile networks or Wi-Fi
• Long distance streaming over Internet
• Speakers can receive messages and send files
• Password function prevents unauthorised access
• Guaranteed on-time logistics
• No extra hardware required
• Portable Wi-Fi units available

Benefits

• Simple to use with minimal set-up
• Facilitates easy social distancing
• A future-proofed solution with no capital costs
• Crystal clear commentary
• No recharging or cleaning of devices
• Minimal data use or completely free over Wi-Fi
• Compatible with all Android and iOS devices
• Instant pairing and no bluetooth issues
• Immersive user experience

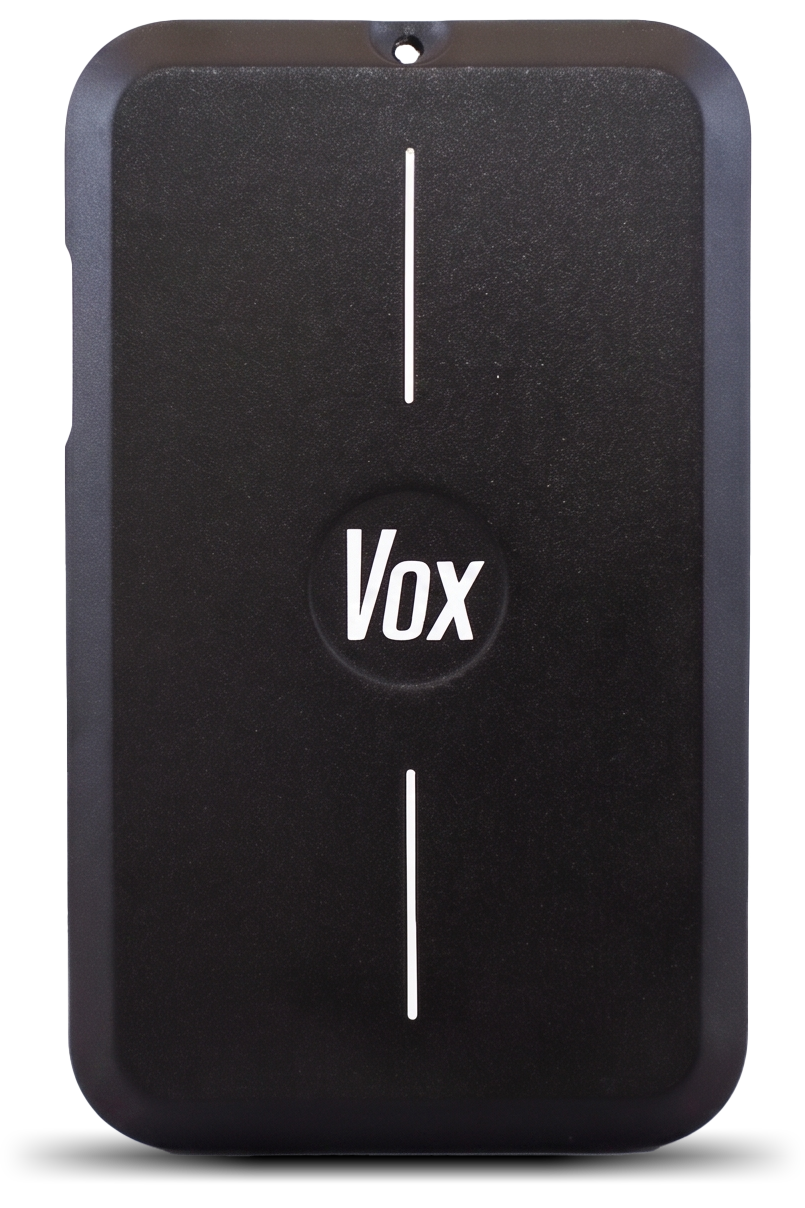

Vox Box is a compact and lightweight Wi-Fi control unit and high-performance router, that is used as a portable connectivity method for Vox Connect. Easy to carry, the Vox Box has a rechargeable battery life of 10 hours and does not require guests to have a data or internet connection. We recommend Vox Box in cultural venues or outdoor places with poor mobile reception. Vox Connect™ coupled with the Vox Box offers creates a convenient local network to facilitate rich visitor experiences!

Technical specifications

VoxBox has USB charging and can be instantly muted. A SIM card for long distance login and streaming is available since mid 2022.

CONTENT

• Ruckus R610 Indoor 802.11ac Wave 2 3×3:3 Wi-Fi Access Point
• Quectel EC25/EG25 Series LTE Cat 4 Module
• MainBoard AM075-3 – MicroSD card slot – Micro Sim Card slot – Oled display ssd1309 128×32 px
• VARISCITE DART-MX8M-MINI
• DTP8550116-3S/6800 mAh 11.7V Li-ion Polymer Battery

Frequency Range	WiFi: 2.4Ghz and 5Ghz ISM (2.4-2.484GHz) U-NII-1 (5.15-5.25GHz) U-NII-2A (5.25-5.35GHz) U-NII-2C (5.47-5.725GHz) U-NII-3 (5.725-5.85GHz)Frequency Bands: LTE FDD: B1/B3/B7/B8/B20/B28A LTE TDD: B38/B40/B41 WCDMA: B1/B8 GSM/EDGE: B3/B8 GNSS: GPS/GLONASS/BeiDou (Compass)/Galileo/QZSS
Channels	WIFI: 2.4GHz: 1-13 5GHz: 36-64, 100-144, 149-165
Streaming Audio Latency	AMM Stream: – Device iOS: 180ms – Device Android: 300msAMM+Vox App: – Device iOS: 180ms – Device Android: 300ms
Action Range	50 meters
Operation Temperature	0°C (32°F) – 40°C (104°F)
Supply Voltage	USB C Charger: 5V DC 2A Nominal: 11.1V DC Built-in battery: Polymer Li-ion rechargeable Battery 12V DC/6800mAh, Model: DTP8550116- 3S/6800mAh
Size	229(L), 205(W),62(H)mm
Weight	1250gr

Vox Local Expert solves the challenge of finding available local or multilingual guides. This pioneering solution lets your tour escort stream points of interest from their smartphone directly to guests Vox radio headsets, delivering commentary in their own language.

Our innovative guiding system provides real-time multilingual translation directly to guests’ smartphones.

• Experience live translations of your guide’s commentary in the guests’ chosen language.
• Seamlessly conduct tours with participants from different nationalities.
• Enhance profitability by catering to diverse tour groups.

Vox in-ear earphones are sealed and supplied individually. They are made from high quality materials and remain the property of each guest after use. The design is aesthetically pleasing and conforms to the latest hi-fi functionality. Vox undertakes to responsibly recycle unwanted used earbuds, and provides free carriage for their return to Vox logistics centres.

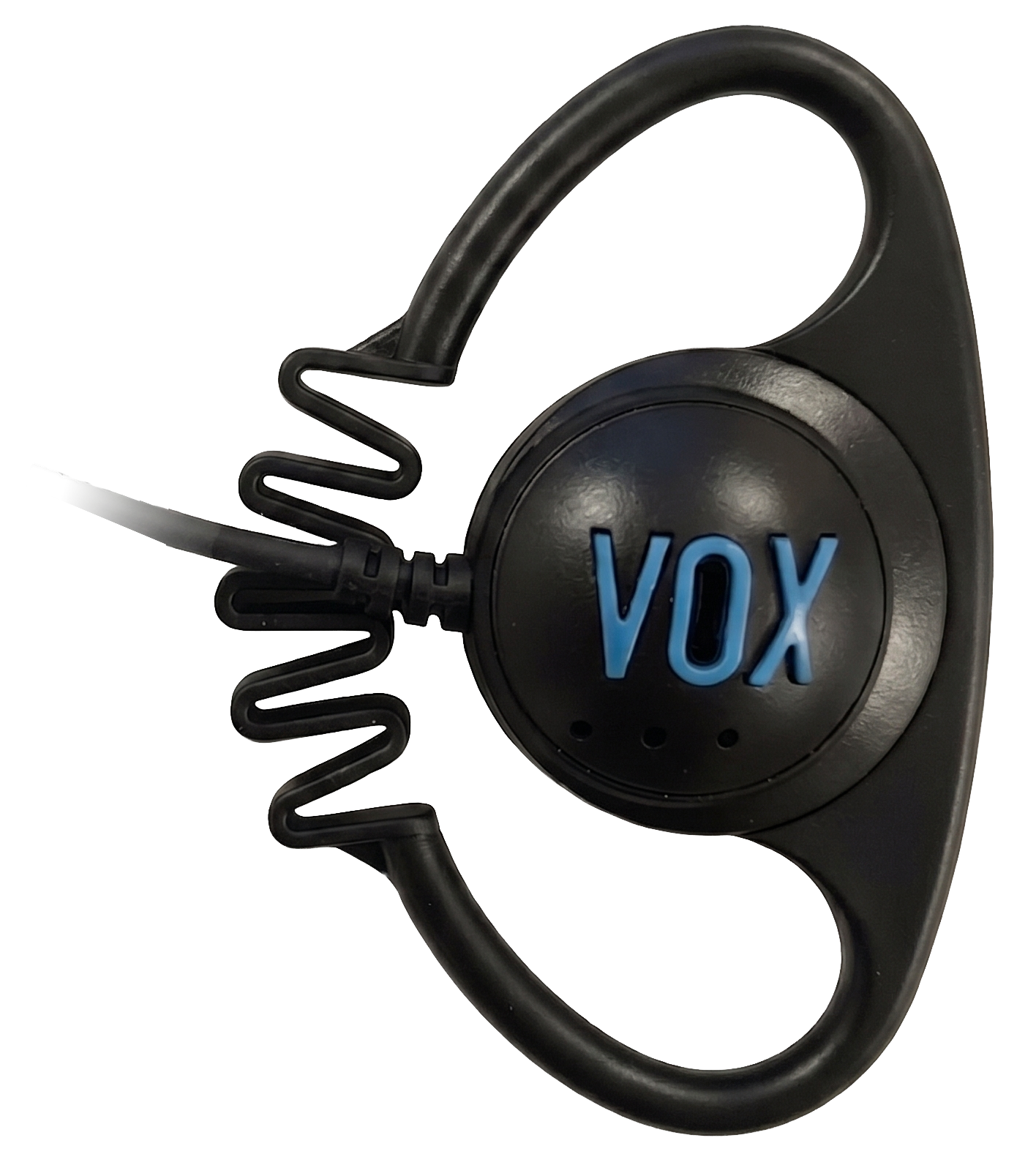

Over-ear earphones

We supply this special earpiece for guests who use hearing aids, or who are unable to use our standard in-ear earpieces for any other reason. Each unit is sanitised for each guest before despatch, and again on return to Vox logistics centres.

Vox eco-friendly cases

Vox takes caring for the environment very seriously and strives to conduct business always in a socially responsible manner. All Vox despatch boxes are now manufactured from eco-recyclable materials and are consistently reused over many years.

Microphones

The clip-on design of these practical, small-sized, and lightweight microphones ensures a high level of comfort throughout the entire tour. Moreover, their omnidirectional functionality allows speakers to move freely without any compromise on the reception quality of the sound.
